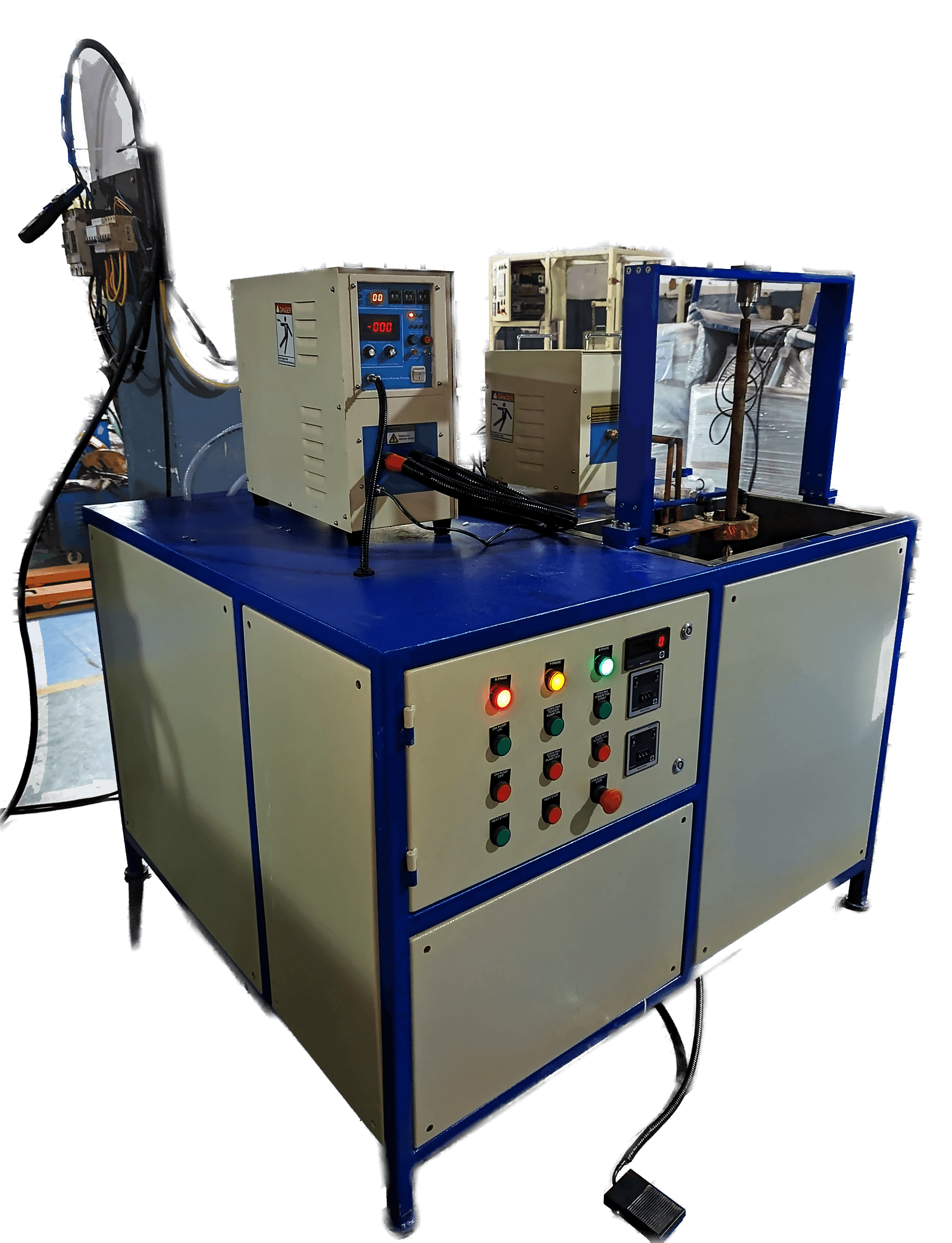

Induction power supply
ABE-25AB
25kW
Stationary heating and hardening up to 30 mm diameter.
ABE-25AB is specified for brazing, end heating, annealing, hardening, tempering and soldering across hand tools and auto components.
For hardening specifically, We use this machine for stationary heating and hardening applications up to 30 mm diameter components. Stationary means the part and the coil do not traverse relative to one another during the cycle: the whole heated zone comes up to temperature together and is quenched together. It is the right approach for short features such as pins, tips, small journals and tool ends.
A double-station variant of the ABE-25AB is built for induction brazing, where one station heats while the operator loads the other, roughly halving the effective cycle time on manual work.
Technical specifications
| Parameter | Specification |
|---|---|
| Output power | 25 kW. We confirm the duty cycle for your application. |
| Oscillation frequency | We select the frequency for your material, heating zone and required case depth. |
| Input power supply | We confirm the voltage, phase, frequency and connected load in your quotation. |
| Cooling water requirement | We specify the water flow, pressure, quality and cooling circuit for your machine configuration. |
| PLC / automation interface | Manual, PLC or CNC control options. We confirm communications and I/O with your automation requirements. |
| Compatible steels and alloys | We assess your material grade and heat treatment requirements before confirming suitability. |
| Maximum shaft diameter, hardening | 30 mm (1.18 in), subject to component and process review. |
| Switching technology | Solid-state IGBT |
Calculating required power? Run your cycle time on the Induction Power Estimator.
We select the frequency, dimensions, cooling and handling for your application. Send us your component drawing and required cycle time so we can confirm the complete machine specification.
